18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply

Product Categories
Guang Zhou Sunland New Energy Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply

  • 1
  • 2

Place of Origin : Shenzhen zhuhai

Brand Name : TAC OEM ODM

Certification : MSDS REACH ROHS

Model Number : PIFC0098

MOQ : 200PCS

Price : usd 2.0

Packaging Details : Follow UN38.3 Rule

Delivery Time : 7 days for single cell 15-20 days for battery pack

Payment Terms : TT, LC, Paypal, etc

Supply Ability : 50000 pack for one week

type : Lifepo4 Battery

capacity : 1500mah

voltage : 3.2V

discharger current : 5A

Circle life : 2000 times

warranty : 12 months

application : Power Supply

pvc : blue

Contact Now

18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply

Quick Detail for 18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply

  1. High Capacity: 1500mAh @ 0.2C Discharge
  2. Max. continue discharge current: 5A
  3. The single cell can assem the battery pack if you like
  4. Long cycle life about 2000 times.

Specification for 18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply

No.

Items

Specifications

1

Charge cut-off voltage

3.65V

2

Nominal voltage

3.2V

3

Minimal capacity

1500mAh @ 0.2C Discharge

4

Nominal capacity

1550mAh @ 0.2C Discharge

5

Charge current

1C

6

Standard charging method

1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C

7

Charging time

Standard charge: 2.0 hours Ref

8

Max. charge current

2C

9

Max. continue discharge current

5A (Cell skin temperature cannot exceed 80°C)

10

Discharge cut-off voltage

2.0V

11

Operating temperature

Charging: -10°C ~ 45°C

Discharging: -20°C ~ 60°C

(Cell skin temperature cannot exceed 80°C)

12

Storage temperature/humidity

Temperature -10°C ~ +35°C

Humidity 65%±20%RH

(Recommended to store 23 ± 5°C for long term storage)

13

Cell Weight

42.0g±1.0g

14

Cell Dimension

Length: 65.0±0.3 mm

Width: 18.2±0.2 mm

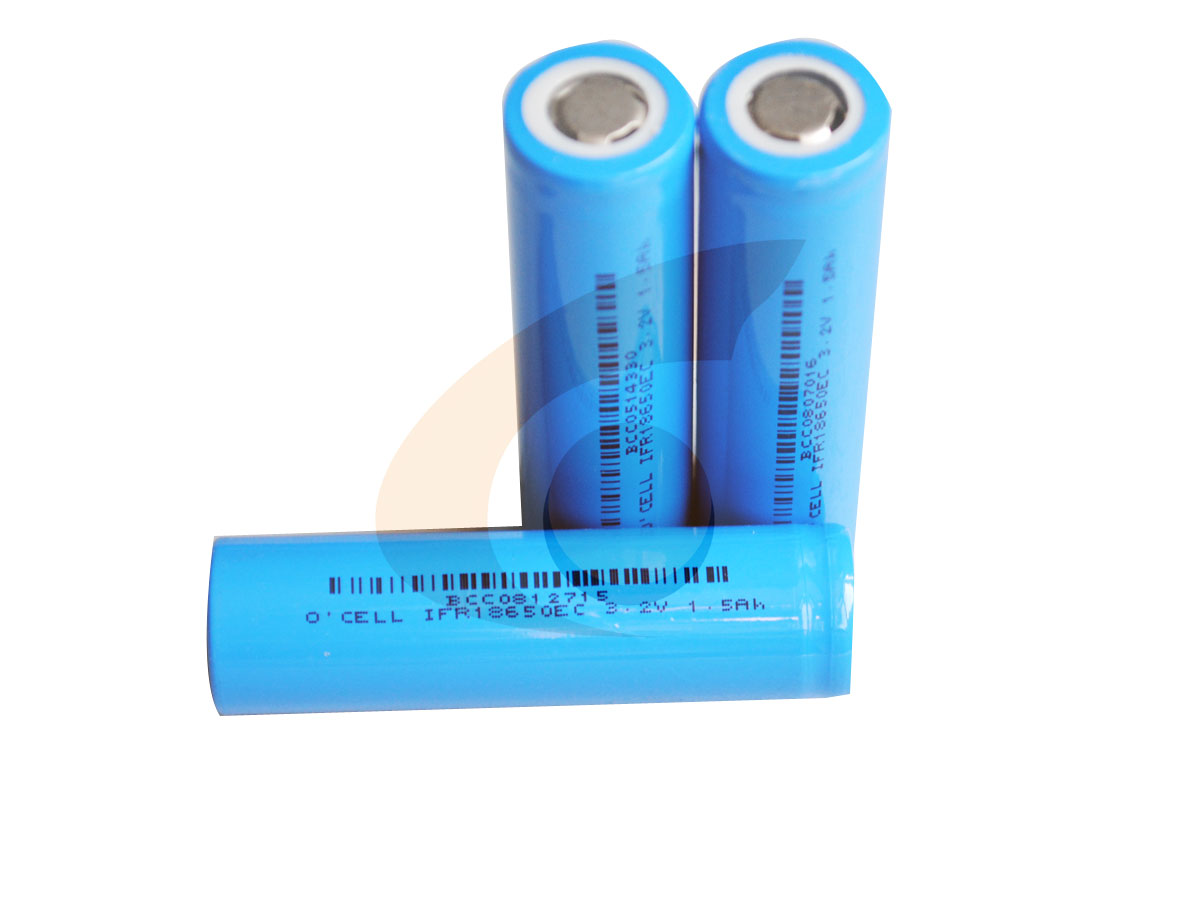

Picture of High Capacity 18650 3.2V LiFePO4 Battery 1500mAh for Power supply

18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply

Application:

High Capacity 18650 3.2V LiFePO4 Battery 1500mAh for Power supply,Flashlight,LED light.

18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply

Packing Manners

18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply

Homolog Production for Lifepo4 Cell

18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply
