High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply

Name: High Rate Discharge 26650 32v Lifepo4 Battery 3300mAh For Power Supply
Brand: TAC OEM ODM
Price: 1.0 USD

High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply Manufactures

Place of Origin : Shenzhen zhuhai

Brand Name : TAC OEM ODM

Certification : MSDS REACH ROHS

Model Number : PIFC0036

MOQ : 200PCS

Price : usd 1.0

Packaging Details : Follow UN38.3 Rule

Delivery Time : 7 days for single cell 15-20 days for battery pack

Payment Terms : TT, LC, Paypal, etc

Supply Ability : 50000 pack for one week

Nominal voltage : 3.2V

Charge current : 1C

Charging time : Standard charge: 2.0 hours Ref

capacity : 3300mah

circle life : 500 times

pvc : blue

assemble : workable

wire : with customized

Contact Now

High Rate Discharge 26650 3.2v Lifepo4 Battery Cell 3300mah For Power Supply

Quick Detail:

High Capacity: 3300mAh
Max. continue discharge current: 10A
Have a long cycle life about 2000 times

Specification for High Rate Discharge 26650 3.2v Lifepo4 Battery Cell 3300mah For Power Supply

No.	Items	Specifications
1	Charge cut-off voltage	3.65V
2	Nominal voltage	3.2V
3	Minimal capacity	3300mAh @ 0.2C Discharge
4	Nominal capacity	3350mAh @ 0.2C Discharge
5	Charge current	1C
6	Standard charging method	1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C
7	Charging time	Standard charge: 2.0 hours Ref
8	Max. charge current	2C
9	Max. continue discharge current	10A (Cell skin temperature cannot exceed 80°C)
10	Discharge cut-off voltage	2.0V
11	Operating temperature	Charging: -10°C ~ 45°C Discharging: -20°C ~ 60°C (Cell skin temperature cannot exceed 80°C)
12	Storage temperature/humidity	Temperature -10°C ~ +35°C Humidity 65%±20%RH (Recommended to store 23 ± 5°C for long term storage)
13	Cell Weight	80.0g±1.0g
14	Cell Dimension	Length: 65.0±0.3 mm Width: 26.2±0.2 mm

Pictures:

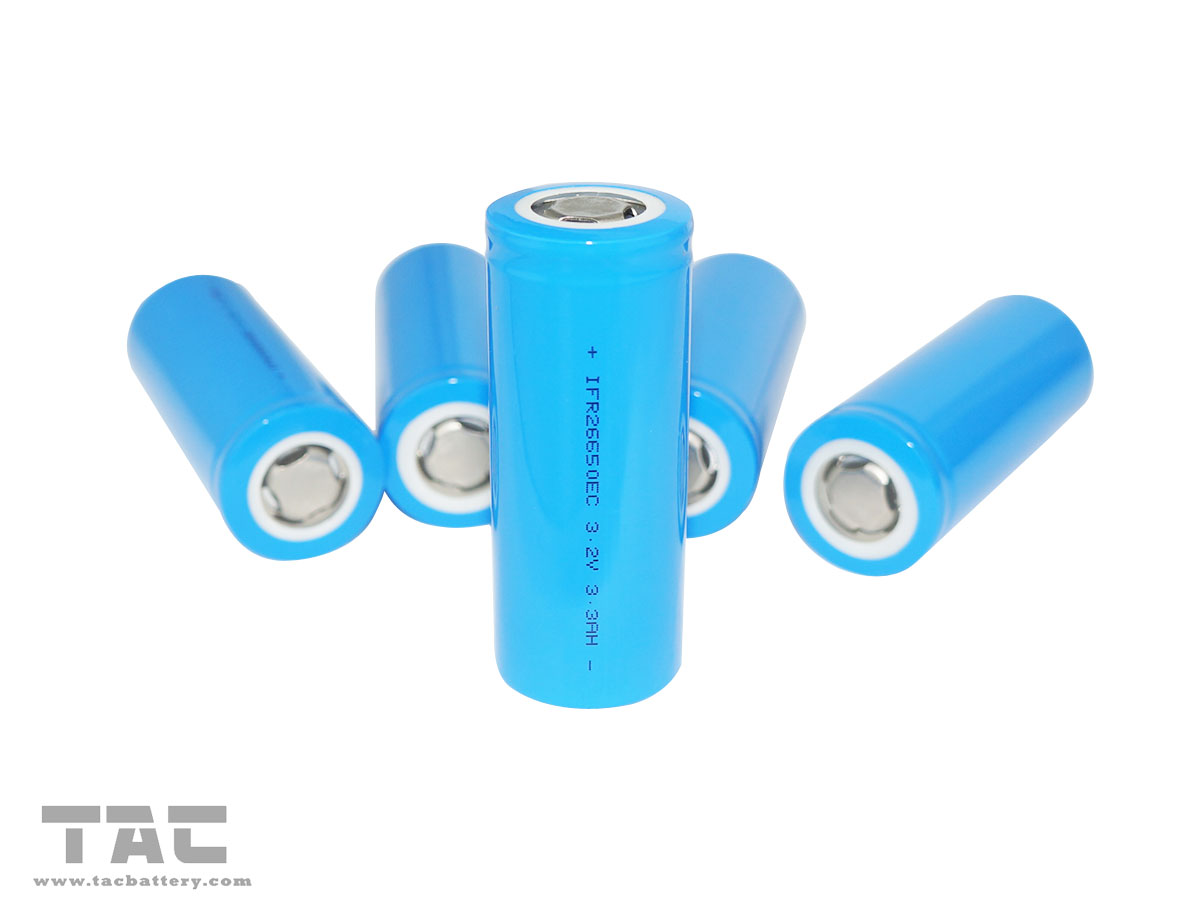

High Capacity 26650 3.2V LiFePO4 Battery cell 3300mAh for Power Supply

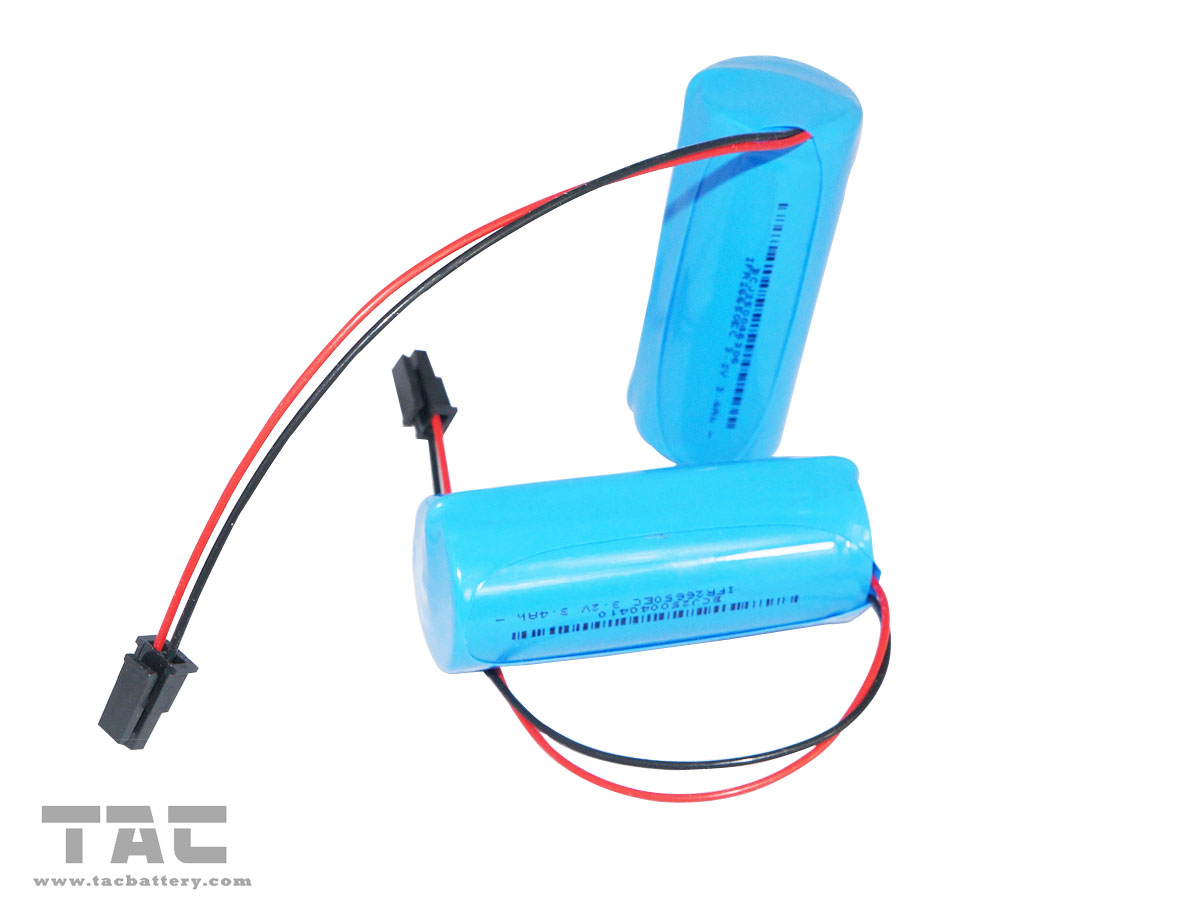

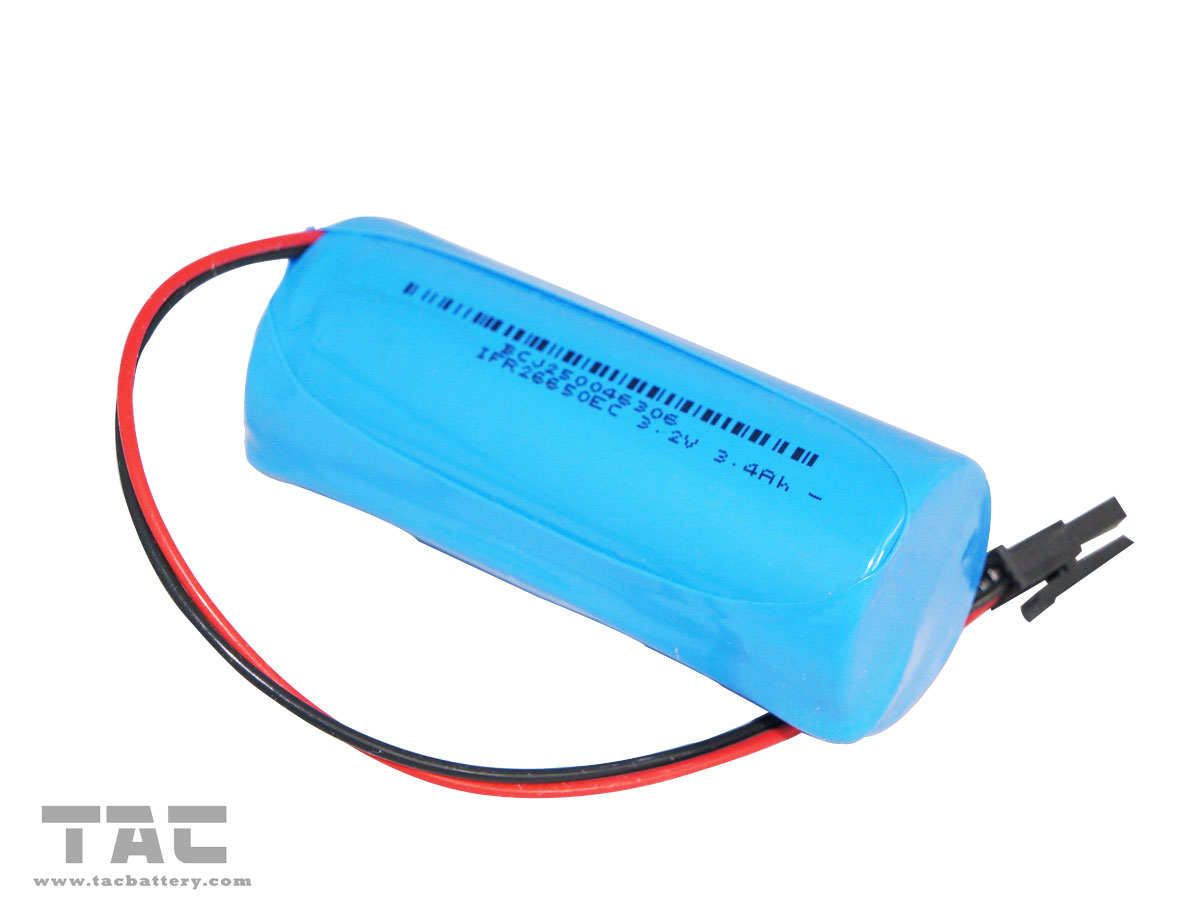

We can add the wire and the connector on the battery if you like

Application:

High Capacity 26650 3.2V LiFePO4 Battery cell 3300mAh for Power Supply, Flashlight and LED light

High Rate Discharge 26650 3.2v Lifepo4 Battery 3300mAh For Power Supply

Packing Detail

More Model for Lifepo4 Battery

Models	Dimension	Description
IFR18650EC	Φ18 x 65mm	3.2V 1500mAh
IFR26650EC	Φ26 x 65mm	3.2V 3300mAh

IFR26650JE	Φ26 x 65mm	3.2V 3000mAh
IFR18500JE	Φ18 x 50mm	3.2V 1000mAh
IFR14500JE	Φ14 x 50mm	3.2V 600mAh

IFR18650PC - 45C	Φ18 x 65mm	3.2V 1100mAh
IFR26650PC - 30C	Φ26 x 65mm	3.2V 2300mAh

IFR26650PE - 0.2C	Φ26 x 67mm	3.2V 3000mAh
IFR26650PE - 0.2C	Φ26 x 67mm	3.2V 3400mAh

Tag: Li-ion battery ,Rechargeable battery,LiFePO4 battery cell
