Rechargeable 12V LiFePO4 Battery Pack for Front Terminal Gel Battery for Solar System

Brand Name : TAC

Model Number : 12.8V170AH

Certification : MSDS REACH ROHS

Place of Origin : SHENZHEN

MOQ : 50 PCS

Price : usd1000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000UNITS PER MONTH

Delivery Time : 7-25 days after order confirm

Packaging Details : 1pcs for one bag with UN38.3

Size : 522*240*219*244mm

Certificates : CE, RoHS

Weight : 56kg

OEM&ODM : Available

circle life : 2000times

warranty : 1 year

Contact Now

Rechargeable 12V LiFePO4 Battery Pack for Front Terminal Gel Battery for Solar System

Quick Detail for Rechargeable 12V LiFePO4 Battery Pack for Front Terminal Gel Battery for Solar System

Model Number:	12.8V170AH	Brand Name:	TAC
Nominal Voltage:	12V	Rated Capacity:	170AH
Size:	522240219*244mm	Certificates:	CE, RoHS
Weight:	56kg	OEM&ODM	Available

Features:

Deep circle 2000times base on 100% DOD
The battery pack with or without housing follow customer's require
12V 170ah Portable Energy storage system

Rechargeable 12V LiFePO4 Battery Pack for Front Terminal Gel Battery for Solar System Specification:

No.	Item	General Parameter		Remark
1	Rated Capacity	170.0Ah		Standard discharge(0.2 C5)after standard charge(0.2 C5)
2	Minimal Rated Capacity	165.0Ah
3	Nominal Voltage	12.8V
4	Cycle Life	Higher than 60% of the Initial Capacity of the Cells		◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 10.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles 100%DOD ◆Carry out 3000cycles 80%DOD ◆Carry out 3500cycles 60%DOD
5	Discharge cut-off voltage	10.0V		10.0V( recommended)
6	Charging cut-off voltage	15.6V		14.6V (recommended)
7	Cell and assembly method	IFR26650EC-3.3AH		4S52P
8	Housing material	ABS+PC housing
9	Standard charge		0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C	Charge time : Approx 7h
10	Standard discharge		Constant current 0.2C Cut-off voltage 10.0V
11	Maximum Charge Current		40A
12	Continuous Discharge Current		40A
13	Operation Temperature Range		Charge: 5~45℃	60±25%R.H.
			Discharge: -10~60℃
14	Storage Temperature Range		Less than 1 year : 0~25℃	60±25%R.H. at the shipment state
			Less than 3 months:-5~35℃
15	Weight		Approx: 19.1Kg
16	Max.Dimension		Height:270mm
			Width: 155mm
			Length: 340mm

Capacity Standard Test Conditions And Data

Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.

Packing for IFM12.8V170Ah PV Rechargeable

The battery pack put into wood pallet to keep the safety

Rechargeable 12V LiFePO4 Battery Pack for Front Terminal Gel Battery for Solar System

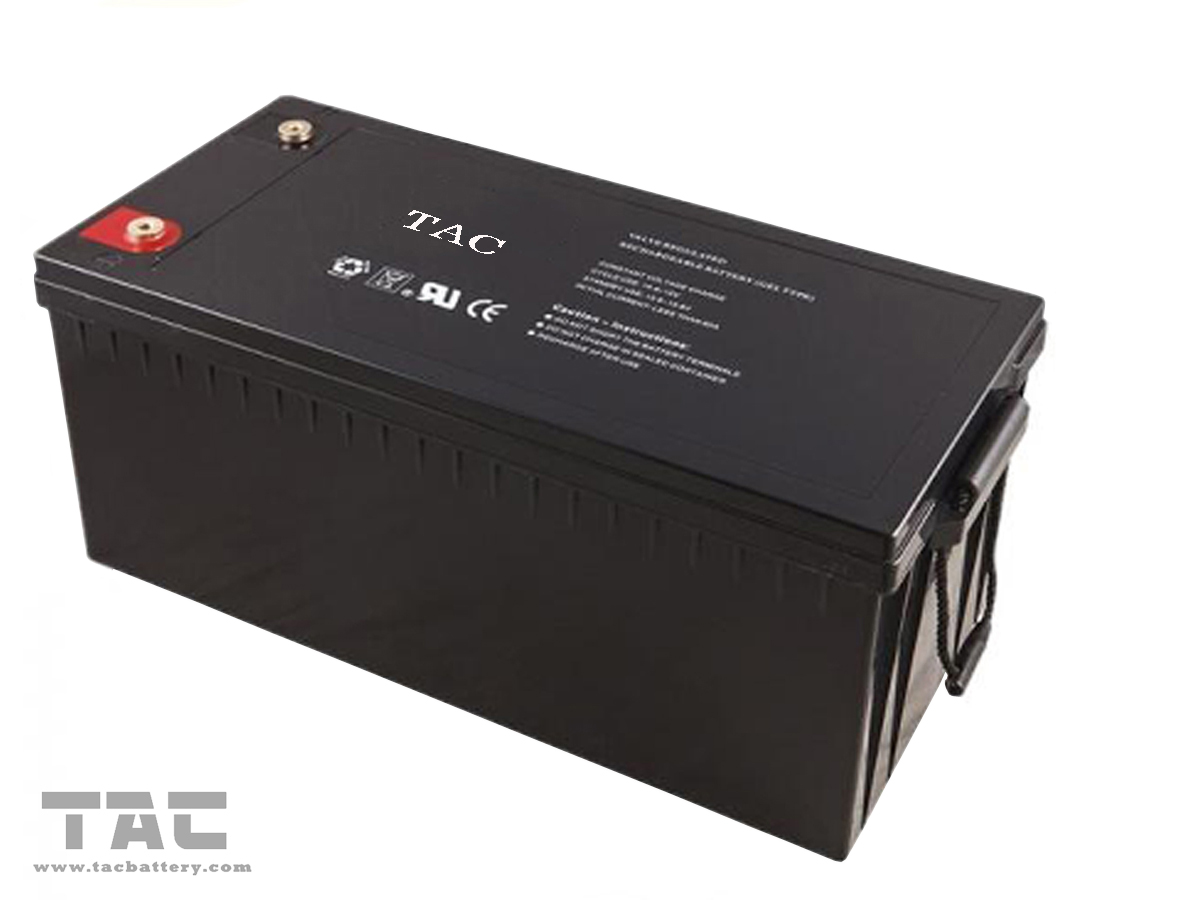

Picture for Rechargeable 12V LiFePO4 Battery Pack for Front Terminal Gel Battery for Solar System

Rechargeable 12V LiFePO4 Battery Pack for Front Terminal Gel Battery for Solar System

Delivery Date

25days for norml standard module

35days for OEM order

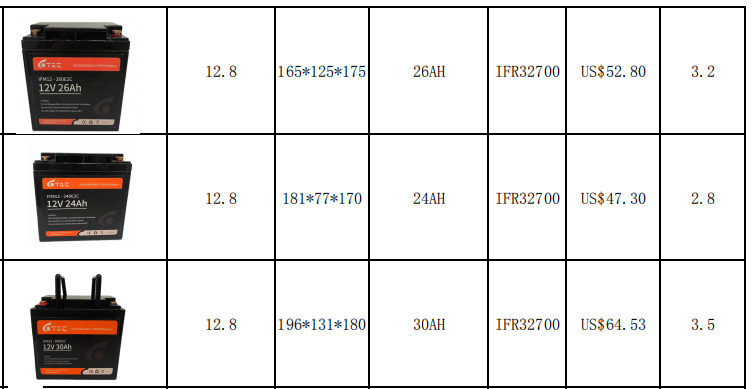

12v LiFePO4 Battery Pack Production List
