Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp

  • 1
  • 2

Brand Name : TAC OEM ODM

Model Number : LFP303505E 300MAH 3.2V

Certification : MSDS REACH ROHS

Place of Origin : Shenzhen zhuhai

MOQ : 200PCS

Price : usd 2-3

Payment Terms : L/C

Supply Ability : 50000 pack for one week

Delivery Time : 7 days for single cell 15-20 days for battery pack

Packaging Details : Follow UN38.3 Rule

Type : l.2V LiFePO4 battery

voltage : 3.2V

Capacity : 300mah

circle life : 2000times

size : 5*30*35mm

warranty : 12 months

Contact Now

3.2V LiFePO4 Battery 300MAH LFP303505E Prismatic Cell For Miner Lamp

Key Data for 3.2V LiFePO4 Battery 300MAH LFP303505E Prismatic Cell For Solar Production

NO. Items Parameter Remarks
1 Rated Capacity 300mAh Discharge:0.2C
Cut-off voltage:3.0V
Minimum Capacity 280mAh
2 Energy 0.96Wh
3 Nominal Voltage 3.2V
4 Open Voltage ≥3.2V
5 Load Voltage ≥3.2V 10Ω
6 Cycle Life ≥2000 times
7 Internal Impedance ≤27mΩ AC 1KHz after 50% charge
8 Charge voltage 4.1V
9 Standard charge current 150mA
10 Max charge current 300mA
11 Standard discharge current 600mA
12 Max Discharge current 0.2A
13 Discharge cut-off voltage 2.0V
14 Operating Temperature 0~+55℃ Charge
-20~+60℃ Discharge
15 Storage temperature for a long time -20~25℃
16 Weight 42±1g
17 Dimensions 05*30*35mm single cell

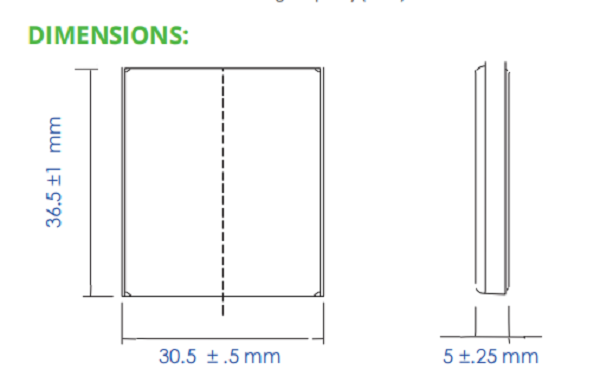

Engineer Drawing

Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp

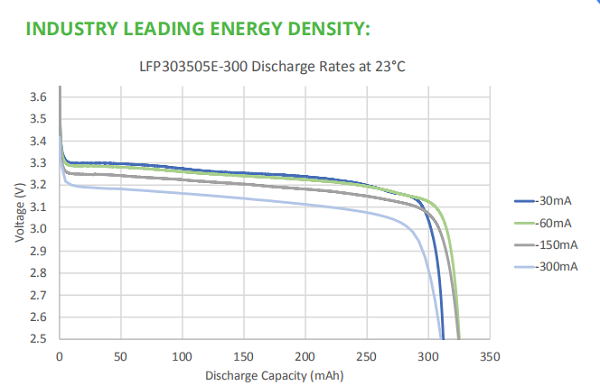

Discharge Rate Test Data

Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp

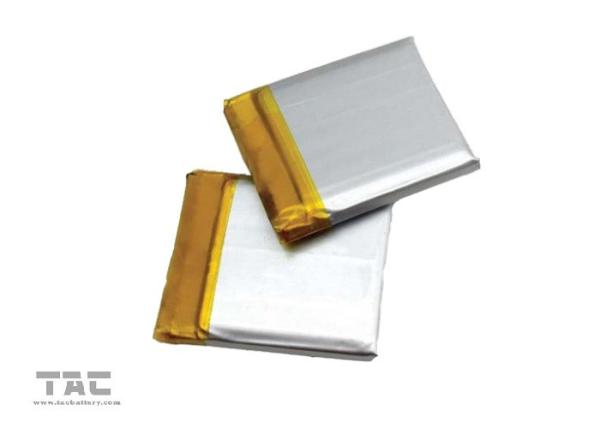

Battery Picture

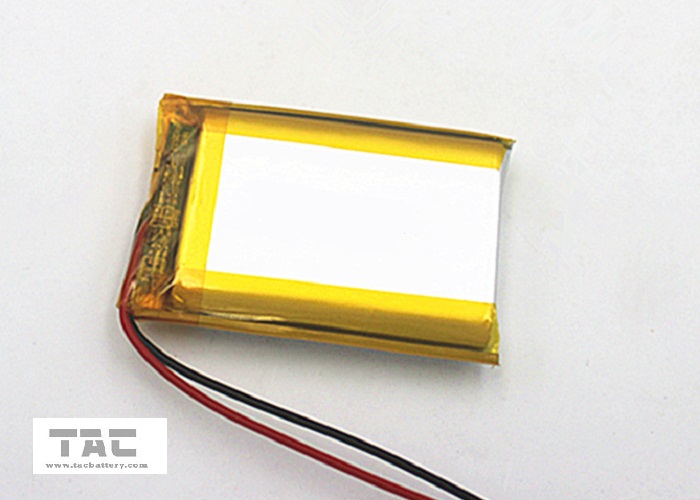

Battery with PCB

Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp

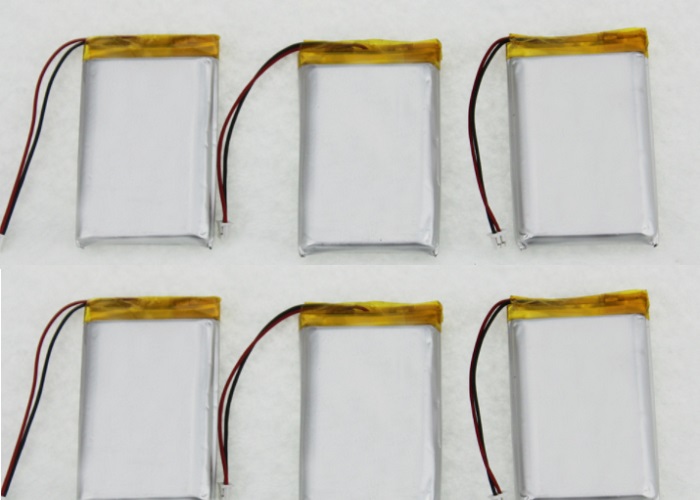

Battery with connector

Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp

Application

This is small size design for miner lamp street lamp lawn lamp and other solar production

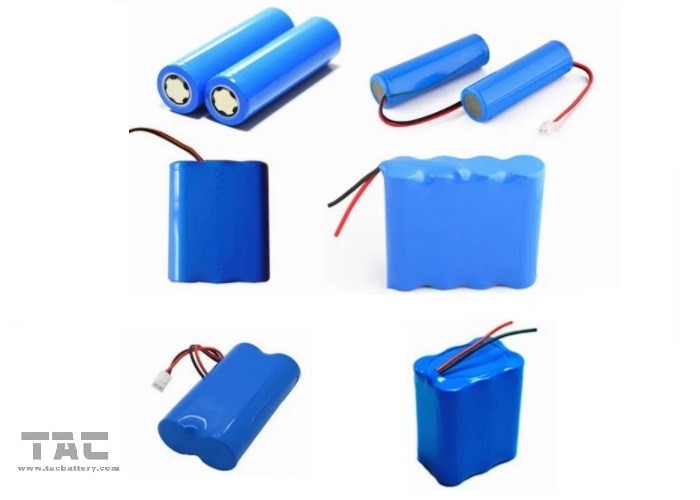

Hk tac also smade more other 3.2v Lifepo4 battery including of cylindrical cell and pack

Light Weight 3.2 Volt LiFePO4 Battery 300MAH LFP303505E For Miner Lamp
