3.2V LiFePO4 Battery 150ah with Long Service Life Design for Containerized ESS
Feature for 3.2V LiFePO4 Battery 150ah with Long Service Life Design for Containerized ESS
- The capacity retention rate≥80%@4500cycles, ≥70%@7000cycles
- High capacity 150 ah for single cell
- Specially Design of Applicable for Various ESS Solutions
- Hot design Square Aluminum Shell
Specification for 3.2V LiFePO4 Battery 150ah with Long Service Life Design for Containerized ESS
| NO. | Item | Specification | Remark |
| 1 | Nominal Capacity | 150Ah | 0.2C, CC(constant current)discharge to 2.0V cut off, at 23±3℃ |
| 2 | Nominal Voltage | 3.2V | |
| 3 | Standard Charging Current | 0.2C | 0～45℃0.2CCC(constant current)charged to 3.6V,then CV(constant voltage 3.6V)charge till charge current ≤0.02C |
| 4 | Max. Charging Current | 1.0C | |
| 5 | Charge Ending Voltage | 3.6V | |
| 6 | Standard Discharging Current | 0.2C | 0.2CCC(con constant current)discharged to 2.0V |
| 7 | Max. Continual Discharging
Current | 2.0C | |
| 8 | Discharge Ending Voltage | 2.0V | |
| 9 | Standard Charging Time | 5～6h | |
| 10 | Rapid Charging Time | 1～2h | |
| 11 | Production Impedance | ≤30mΩ | AC Impedance 1KHz |
| 12 | Battery Weight | ≤ 500g | No include box |
Specially Packing Detail
1 pcs put in plastic tray, , 10 trays shrink together to avoid short circle and vibration

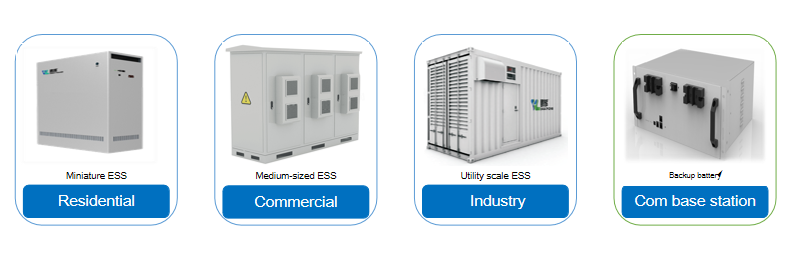

Application for LiFePO4 Battery Square Cell
The single cell will be assembled to various ESS
Solar energy storage,Home wall ,home storage ,E-vehicle products.
solar street light,wind energy storage ,UPS
telecommunication power supply, photo voltaic power station

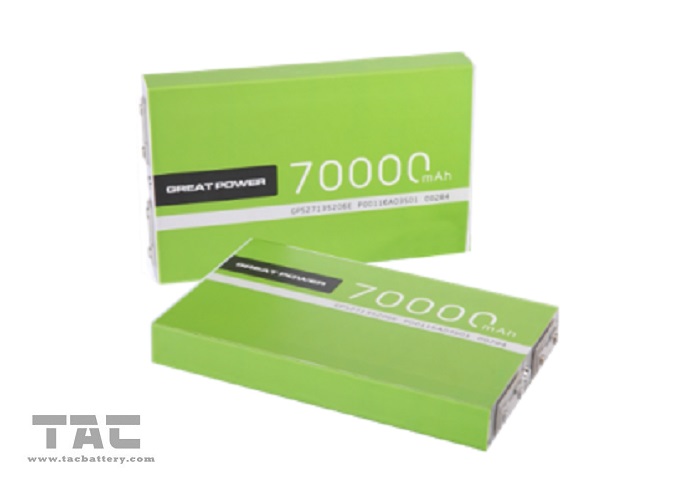

Picture for Singer Cell

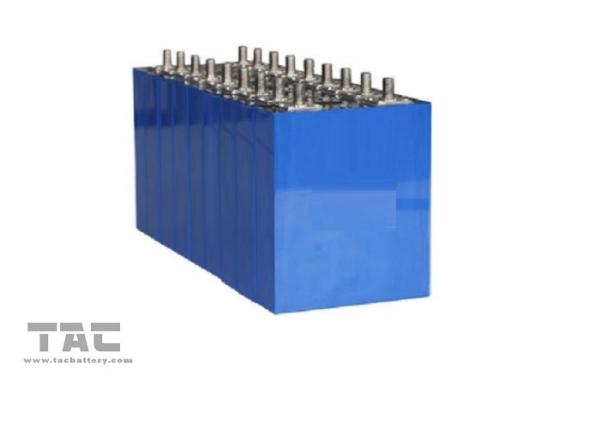

The single cell were assembled to various battery pack
More Detail For Lifepo4 Battery
| MODEL | CAPACITY | VOLTAGE | mΩ≤ | T | W | l |
| F7050125TP-2900 | 2900 | 3.2 | 2.4 | 6.94 | 50.19 | 126.89 |
| F8054106SP-3000 | 3000 | 3.2 | 2.3 | 7.88 | 53.87 | 104.99 |
| F706094-3000 | 3000 | 3.2 | 3.5 | 6.6 | 58.4 | 94.58 |
| F6567102TP-3000 | 3000 | 3.2 | 2 | 6.31 | 67.17 | 103.56 |
| F134295SP-3300 | 3300 | 3.2 | 2 | 12.32 | 42.05 | 96.97 |
| F9044130TP-3300 | 3300 | 3.2 | 2.2 | 8.16 | 44.4 | 130.61 |
| F7264110TP-3500 | 3500 | 3.2 | 2.2 | 7.41 | 64.95 | 112.51 |
| F7567102TP-3500 | 3500 | 3.2 | 2 | 7.28 | 66.86 | 103.06 |
| F106094TP-3600 | 3600 | 3.2 | 2.2 | 9.23 | 59.18 | 94.48 |
| F8367102TP-3700 | 3700 | 3.2 | 2.0 | 7.65 | 67.25 | 103.7 |
| F9045145TP-4000 | 4000 | 3.2 | 2 | 8.79 | 44.73 | 144.83 |
| F9567102TP-4300 | 4300 | 3.2 | 2 | 8.85 | 66.97 | 102.38 |
| F7075130HP-4600 | 4600 | 3.2 | 3 | 6.47 | 73.86 | 130.77 |
| F1167102TP-5000 | 5000 | 3.2 | 2 | 10.29 | 66.88 | 104.08 |
| F6884165TP-6000 | 6000 | 3.2 | 2 | 6.36 | 83.41 | 166.05 |
| F76100115HP-6000 | 6000 | 3.2 | 2.5 | 7.1 | 98.75 | 116.08 |
| F1257130HP-6100 | 6100 | 3.2 | 2.5 | 11.09 | 56.12 | 130.48 |
| F7284165TP-6500 | 6500 | 3.2 | 2.2 | 6.97 | 83.41 | 164.65 |
| F9570170TP-7000 | 7000 | 3.2 | 2.0 | 8.8 | 70.49 | 171.62 |
| F9084165TP-8000 | 8000 | 3.2 | 1.8 | 8.42 | 83.37 | 166.38 |
| F8590150HP-8000 | 8000 | 3.2 | 2 | 7.87 | 88.62 | 150.41 |
| F1284165SP-10000 | 10000 | 3.2 | 2 | 10.85 | 84.46 | 165.75 |
| F95130140HP-12000 | 12000 | 3.2 | 1.8 | 8.66 | 129.73 | 140.73 |
| F65160220-17000 | 17000 | 3.2 | 2.5 | 5.96 | 158.07 | 219.03 |
Tac Battery Production Line
About Our Factory
GEM Listed Company
281M RMB registered capital, 6000 employees, 6 manufacturing bases
A Full Range of Products
Four market convergence with full product types of square, cylindrical, polymer and special-shaped batteries
High Price-performance
Products are qualified with excellent performance, up to national safety standard and with lower price than industry average
Over-20-year Technology Accumulation
Over 20 years' technology accumulation of battery manufacturing; professional service for customers with customized power supply solution involved
Superior R&D Strength
Leading R&D level home and abroad
